The Model CT, manufactured by Conveyor Components Company, is comprised of a Control Unit and Tilt Probe which senses the presence or absence of material. The intrinsically safe cULus Listed Control Unit is enclosed in a rugged cast aluminum housing with external red and green LED status indicator lights and surface mount printed circuit boards.
Weatherproof, Dust-Ignition Proof and Explosion Proof models are available. Optional black epoxy powder coating is available for corrosive environments. The tilt level controllers (CT-105, CT-106, or CT-107) have an intrinsically safe output to the tilt probe and are cULus listed as intrinsically safe when used with the cULus listed tilt probes.
The Model CT is commonly
used when other controls won't work due to bin vibration, or actual bin walls
aren't available for mounting other controls. Typical applications include
level detection in hoppers, silos, stackers, crushers, and conveyor transfer
points.

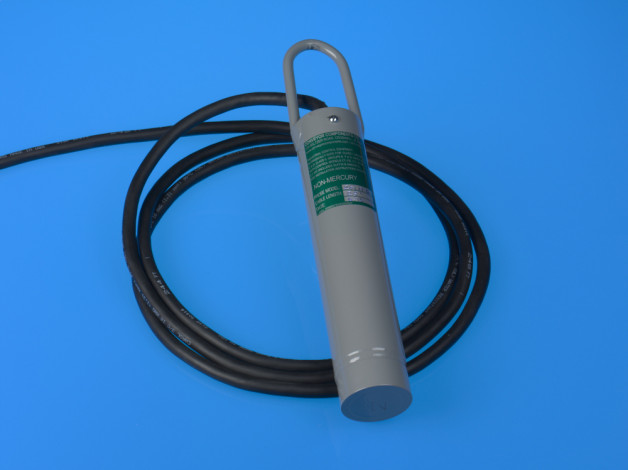

The CT tilt probes are
available as a standard 9” tilt probe or a compact 6” tilt probe and have 25
feet of electrical cable. Stainless steel probe housings are available as
an option. The float ball and paddle accessories are also available for
fine-grain materials.
If you would like
additional information on this or other products that Conveyor Components
Company offers please contact their sales department toll-free at 800-233-3233,
fax at 810-679-4510,
E-mail:
info@conveyorcomponents.com.
Or visit their website at:
www.conveyorcomponents.com.
An ISO 9001 registered
company.
