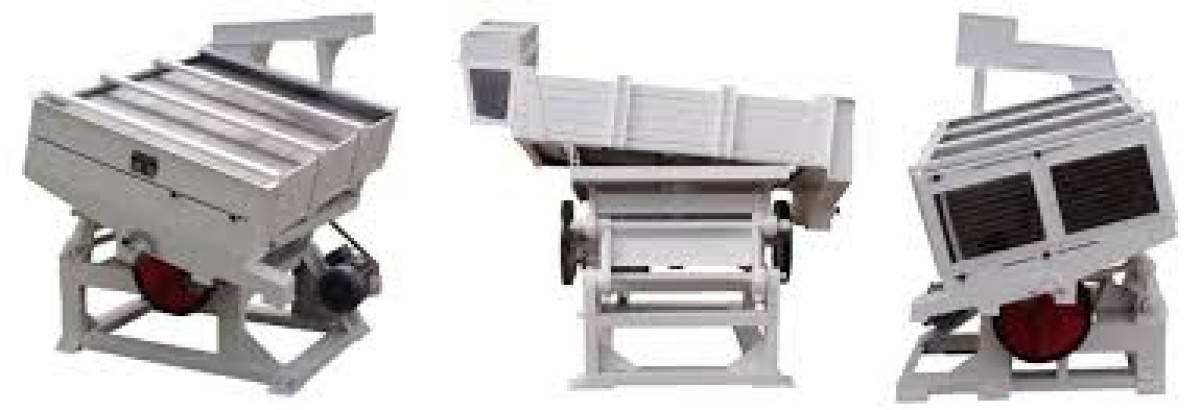

File photo
The paddy separator is composed of eight parts, such as a feeding homogenizer, dividing device, separating box, discharging device, supporting adjustment mechanism, eccentric transmission mechanism, spring buffer device and frame.
(1) Feed leveling device: It is provided with an equalizing flow plate, a large miscellaneous screen, a leveling feed plate and an adjustable scraping plate. The coarse grain mixture flows into the feed port, passes through the homogenizing plate, and then enters the mass screen to remove the mass. Then it reaches the homogenizing feeding plate, and on the way to the forward feeding, the material is further scraped by the adjustable scraping plate and then sent to the dividing device.
(2) Material separation device: composed of six to twelve material slots, the feed leveling device is connected to the six to twelve layers of separation screen plate in the separation box, and the material flow on each layer of separation plate is uniform by adjusting the separator on the material separation device.
(3) Separation box: by the wall panel, column, exit strengthening frame, separation layer, support frame, strut frame and cover plate, layer by layer superimposed with bolts to form a whole, supported on the support adjustment mechanism, so that the movement of each layer of separation plate is consistent.
(4) Discharge device: connected to the exit end of the separation box, there is a grading seasoning board and a flip board, and the movement adjustment is flexible, which can easily control the separation quality.
(5) Support adjustment mechanism: composed of two groups of support rod, support shaft and eccentric lifting mechanism. The upper and the supporting frame, the lower and the frame are connected to form a parallelogram, and the left and right symmetry makes the movement of the separated box stable and consistent. The eccentric lifting mechanism can flexibly adjust the lateral Angle of the separation box (14° ~ 18°) to meet the needs of the process effect.
(6) eccentric transmission mechanism: by the main shaft, eccentric sleeve, draft rod, draft shaft, size bearing seat, balance wheel, balance pulley, etc. The small bearing seat is connected to the support frame, the large bearing seat is connected to the frame, and the balance pulley is driven by the motor to realize the transverse reciprocating movement of the separated box.
(7) Spring buffer device: composed of spring support, spring brace, spring, etc., which has a cushioning and protection effect on the movement of the separated box.
(8) Frame: The plate is hemmed and welded into a whole, and the motor is installed on the frame, which is safe, beautiful and convenient.
