AWILA® introduce a new concept of feed conditioning technology called APC (Anaerobic Pasteurizing Conditioning) technology, it is the compound feed and related industries for the long-term conditioning and processing of either raw materials, grains and full-fat soya. It is a TTM flexibility vertical conditioner type cooking system that means you can manage time, temperature and moisture efficiently. APC technology makes remarkable result as State of Art Technology in Germany, Italy, Russia, Middle east and other European countries. AWILA®'s R&D is ready for sharing the operational method of APC technology to implement in Bangladesh.
How APC technologies
work?

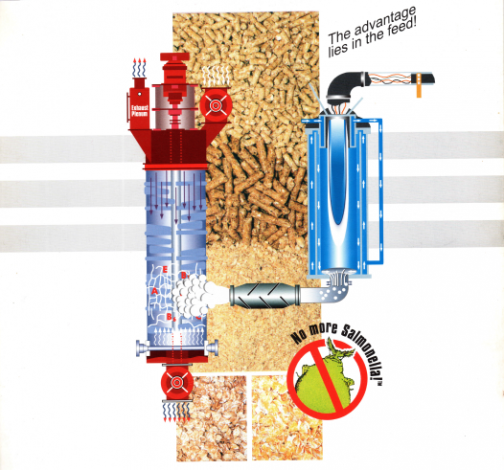

APC technology is composed of the Vaporator Direct-fired Steam Generator with
Original Vertical Conditioner. The Vaporator can instantly produce anaerobic
(oxygen-deficient) steam with independently variable heat and moisture contents
and volumes with a thermal efficiency of 98%. Sealing rotary airlocks lock the
heat in the conditioner & sustain the anaerobic environment. Liquid
addition Systems Are incorporated with water addition as a standard and others
per customer specifications. The PLC based system is for fully automatic
operation and can be easily integrate with new or existing mill control system
allows for both semiautomatic and Manual operation and is designed to be
integrated with or replace tradition press Control systems.
APC technology offers the following
advantages for Pelleting:
a. Increased feed conversion.
b. Increased pellet quality.
c. Increased selectivity of raw
materials due to the advantages of long-term/medium temperature conditioning.
d. Decreased energy consumption, both
electrical and fuel (as compared with other processes).
e. Guaranteed total elimination of
E-coli and Salmonella.
f. 25-30% increased pellet press output with a corresponding reduction in wear and tear on the rollers and die.
Cold meal slowly warms with dynamics Conditioner:
In this technology the mixed meal reaches the required temperature (also
possible to higher temperature) as well as the feed additives particles begin
to soften and the gelatinization of the starch begins. Pressure in lower region
forces gelatinization continues and particle plasticity occurs yielding reduced
friction al die and rollers; that’s why E-coli, Salmonella eliminated.
What is Vaporator (Direct-Fired
Steam Generator):
The Vaporator supplies steam to the original vertical conditioner or steam
chest for the conditioning of ground feedstuffs, whole grain, legumes etc. The
selection of a Vaporator is based on top per hour output with the conditioner,
number of steam chest, tonnage and the individual operating requirements.
Vaporator system operates at very low pressure (<1 bar): In our country most
of the laws related to steam pressure in boilers are complied with. As a
result, a full-time boiler operator is not required.
The Vaporator Offers:
1. 40-60% fuels savings,
2. Instant steam in 10 seconds,
3. Selectable steam temperature,
4. Independent heat and moisture
control,
5. Maximum output of 230kg to 9,080kg steam or 160 kWatt to 7,500 kWatt per hour.
TATCO associated with AWILA® - Germany last 20 years. AWILA® R&D team is
always working on up-to-date technology. Now a day’s global energy crisis is
very serious issue to run a industry. In Bangladesh agro industries sector
should focus on using energy efficient technology for producing high standard
feed. In Russia AWILA® APC technology consider a highest standardization for
their feed sector. We hope in Bangladesh feed sector should follow the right
way for Future Feed.
-By Engr. Md. Altaf
Hossain, CEO, TATCO (Technology & Agro Trading Co.), tatcoaltaf@gmail.com
